Dead Rabbit 4 Rta Hellvape - New Colors

Dead Rabbit 4 RTA Hellvape

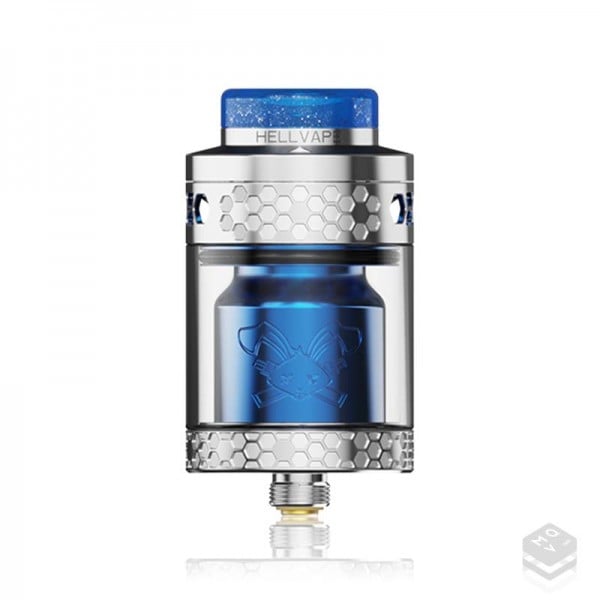

The Dead Rabbit 4 RTA Hellvape is a rebuildable tank atomiser with a postless deck for two coils. Its 26 mm diameter body combines adjustable top airflow with top filling. It is designed for users who install their own coils and replace the cotton as required.

The airflow system carries air from the upper intake to two internal honeycomb outlets beneath the coils. This arrangement directs air towards the underside of the build, while the external adjustment ring controls the intake opening.

The filling cap opens with a quarter turn, providing access to the tank without removing the build deck. The standard configuration uses a 2 ml straight glass and includes a bubble glass. The finishes covered by this listing are Silver Blue, Black Purple, Black Red and Black Green.

What is the Dead Rabbit 4 RTA Hellvape used for?

The Dead Rabbit 4 RTA combines an e-liquid tank with a rebuildable dual-coil assembly. Cotton carries liquid to the coils, which are heated by power supplied from a compatible mod. The atomiser does not contain a battery or electronic power controls.

Its deck accommodates two coils, with their position adjusted relative to the airflow outlets below. Operation depends on the build, cotton placement and power setting on the connected device. It does not use commercial coil heads replaced as complete enclosed units.

Design and operation of the Dead Rabbit 4 RTA

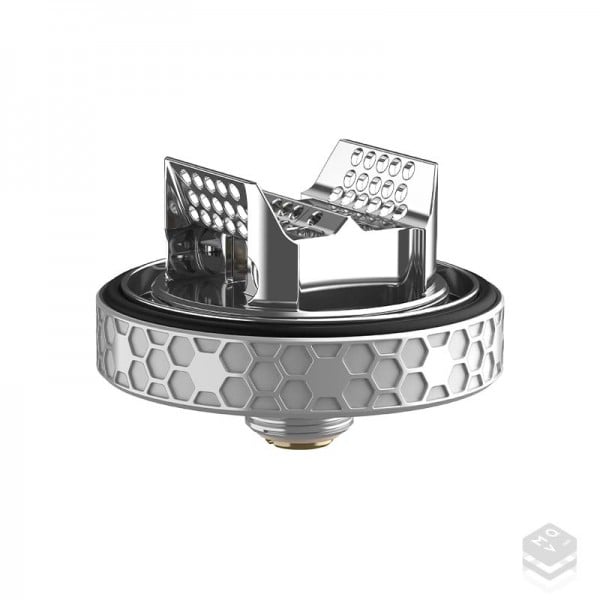

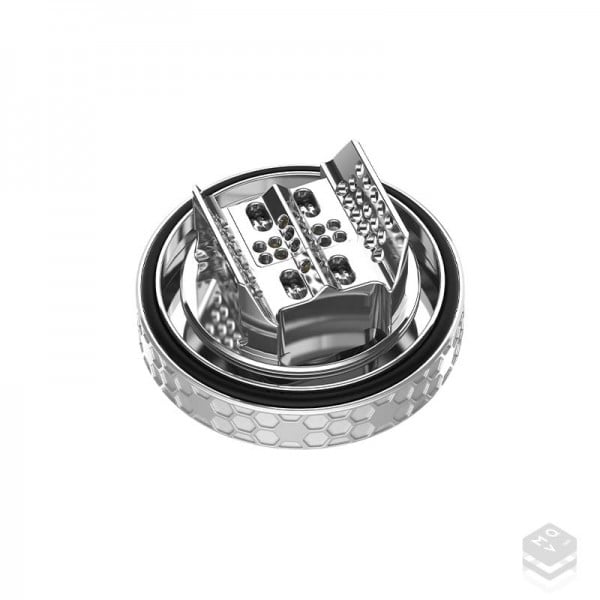

The postless deck holds the coil legs in holes integrated into the build platform. Once secured, the two coils sit above the internal airflow outlets. Their height and position must allow air to pass through and prevent contact with the chamber.

The upper intake and lower outlets perform different tasks: the external ring adjusts the amount of incoming air, while internal channels carry it towards the heating area. The honeycomb openings distribute this airflow beneath each coil.

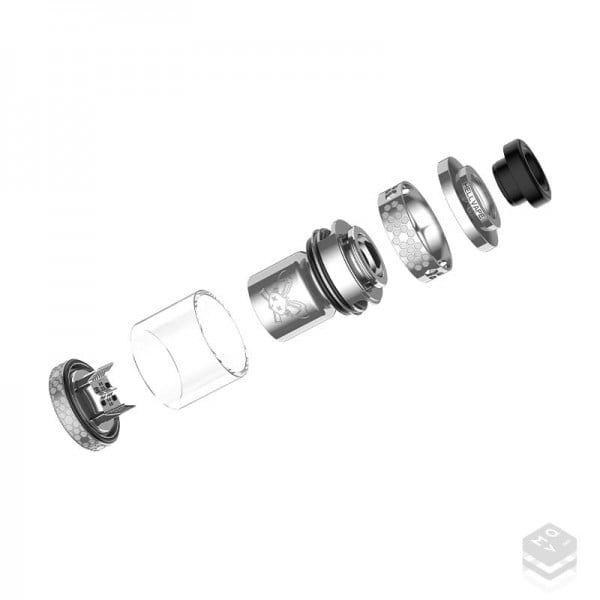

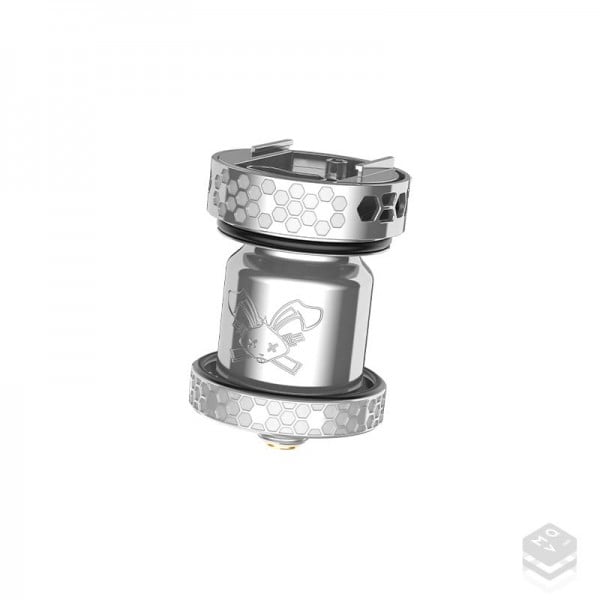

The tank can be taken apart to access its components for cleaning or glass replacement. All four finishes listed here use a resin 810 drip tip. A 510 thread connects the atomiser to the mod.

Main features of the Dead Rabbit 4 RTA Hellvape

• Type: rebuildable tank atomiser.
• Build configuration: dual coil.
• Build deck: postless.
• Diameter: 26 mm.
• Height: 51.85 mm.
• Standard capacity: 2 ml with straight glass and bubble glass.
• Top filling with a quarter-turn cap.
• Adjustable top airflow intake.
• Internal bottom honeycomb airflow outlets.
• Drip tip: resin 810 for all four listed colours.
• Connection: 510.

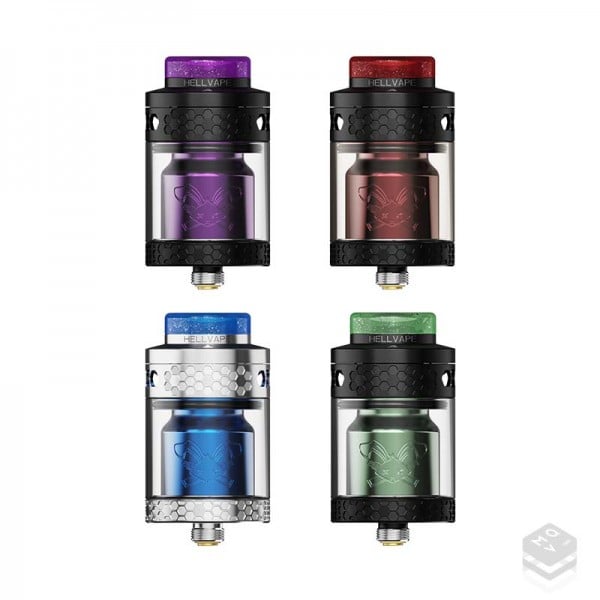

• Colours: Silver Blue, Black Purple, Black Red and Black Green.

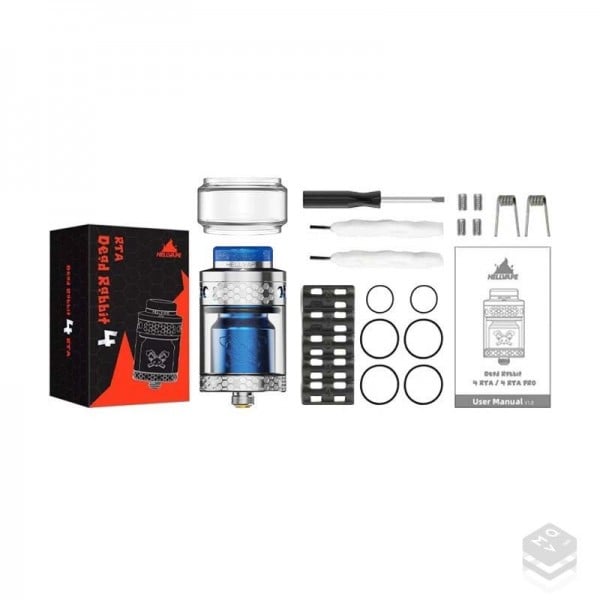

Standard package contents: one Dead Rabbit 4 RTA, two coils rated at 0.37 ohm each, two cotton pieces, one spare bubble glass, one accessory bag and one user manual. The 0.37 ohm rating applies to each individual coil, rather than the final resistance of the dual-coil build.

How to use the Dead Rabbit 4 RTA Hellvape

1. Access the deck, install both coils, secure their legs and trim any excess wire.
2. Check the final resistance and absence of short circuits using suitable equipment. Ensure the build does not touch the chamber.
3. Thread cotton through the coils and position its ends in the wicking recesses without packing them too tightly.
4. Saturate the cotton with e-liquid and reassemble the tank.
5. Open the top cap with a quarter turn, fill through the filling ports and close the cap.
6. Attach the atomiser to a compatible mod, set the power to suit the build and adjust the airflow.

Frequently asked questions about the Dead Rabbit 4 RTA Hellvape

Does it use commercial coil heads? No. Its rebuildable deck requires separate coils and cotton to be installed. The supplied coils can be used for an initial build.

What is its tank capacity? The standard configuration uses a 2 ml straight glass and includes a bubble glass. Capacity changes when the glass is replaced.

Is the airflow at the top or bottom? The external intake is at the top. Internal channels then carry the air to outlets positioned beneath the coils.

Which drip tip do these colours use? Silver Blue, Black Purple, Black Red and Black Green feature a resin 810 drip tip.

Is a battery or mod included? No. The package contains the atomiser and its accessories; a compatible mod is required for operation.

How often should the cotton be replaced? There is no fixed interval. Inspect it according to use, residue build-up and the condition of the assembly, replacing it when it deteriorates or no longer feeds liquid correctly.
