Squonk Reload Mod Reload Vapor Vape

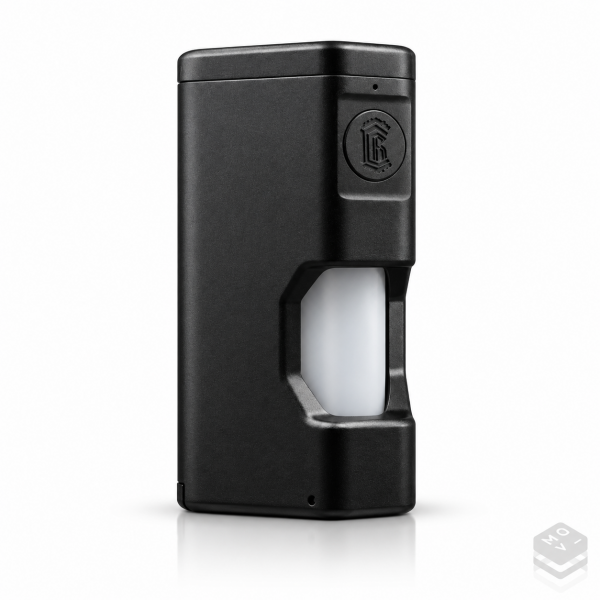

What is the Reload Vapor Squonk Mod?

The Reload Squonk Mod by Reload Vapor is an electronic Bottom Feed device designed for users who want to combine the performance of a BF atomiser with the convenience of an integrated 9ml squonk bottle. Its modern styling, engraved finishes and anodised aluminium construction give it a premium appearance and robust structure while maintaining compact dimensions of 80 x 42 x 25 mm.

The device operates with two replaceable 18650 batteries, which are not included, and can deliver up to 136W maximum power. Its system automatically adjusts power according to the installed build, simplifying operation while providing an output suited to the resistance being used. The stated resistance range is 0.1Ω to 3Ω, with an output voltage of 3.3V to 4.2V.

The integrated silicone squonk bottle feeds e-liquid directly to a compatible Bottom Feed atomiser. With a substantial 9ml capacity and bottom-filling system, it provides a convenient alternative to repeatedly dripping e-liquid onto the build manually. An RGB LED battery indicator also makes it easy to monitor the remaining battery level.

What is the Reload Squonk Mod used for?

The Reload Squonk Mod is designed for use with rebuildable atomisers equipped for Bottom Feed or BF operation. Pressing the flexible integrated bottle pushes e-liquid upwards through the squonk system and into the atomiser, feeding the cotton and coil without having to remove the top cap and drip liquid manually every few draws.

This approach retains many of the advantages associated with a rebuildable dripping atomiser while providing a convenient 9ml internal e-liquid reserve. It is particularly suitable for experienced rebuildable users who want the flavour and customisation of a BF atomiser combined with greater everyday convenience.

The top of the device accommodates atomisers measuring up to 25 mm in diameter without overhang. Its automatic power system adapts output to the compatible build being used, with a maximum available power of 136W.

Why buy the Reload Vapor Squonk Mod?

The Reload Squonk Mod focuses on simplicity, capacity and premium construction. Rather than relying on extensive manual adjustment, it is designed to provide an intuitive Bottom Feed experience through automatic power regulation and a large-capacity squonk bottle integrated directly into the body.

• Bottom Feed system: supplies e-liquid to a compatible BF atomiser directly from the bottle inside the mod.
• 9ml squonk bottle: substantial e-liquid reserve that reduces the need for frequent refilling.
• Up to 136W: high maximum output suitable for a range of compatible rebuildable configurations.
• Automatic power adjustment: the device automatically adapts its power delivery to the installed build.
• Dual 18650 batteries: powered by two replaceable cells to provide the energy required for its performance.
• RGB LED indicator: provides a clear visual indication of remaining battery level.
• Multiple electronic protections: integrated safeguards designed to support safe operation when the device is used correctly.
• Anodised aluminium: robust construction complemented by engraved details and a premium finish.
• Up to 25 mm atomisers: atomisers up to this diameter can sit flush with the body of the mod.
• Compact format: dimensions of 80 x 42 x 25 mm keep the device relatively compact for a dual-battery squonk mod.

Main Features

• Brand: Reload Vapor
• Model: Reload Squonk Mod
• Type: electronic Bottom Feed / Squonk mod
• Dimensions: 80 x 42 x 25 mm
• Weight: 144 g
• Material: anodised aluminium
• Batteries: 2 x replaceable 18650 cells
• Batteries not included
• Maximum power output: 136W
• Power adjustment: automatic according to the installed build
• Output voltage: 3.3-4.2V
• Resistance range: 0.1-3Ω
• Squonk bottle capacity: 9ml
• Bottle filling system: bottom fill
• Battery indicator: RGB LED
• Compatibility: Bottom Feed / BF atomisers
• Maximum flush-fitting atomiser diameter: 25 mm
• Multiple integrated electronic protections

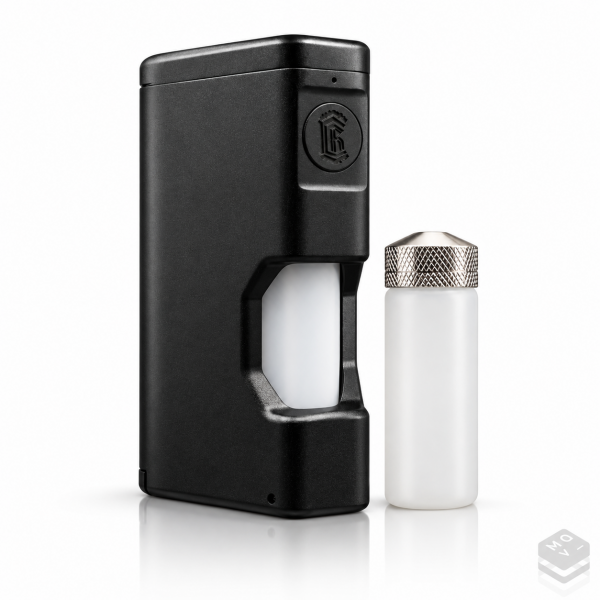

What's included: 1 Reload Squonk Mod, 1 silicone squonk bottle and 1 user manual. The two 18650 batteries required to operate the device are not included and must be purchased separately.

How to use the Reload Vapor Squonk Mod

1. Install two compatible 18650 batteries in good condition, carefully following the polarity markings. Use suitable vaping cells and keep the two batteries correctly paired.
2. Remove the silicone squonk bottle and fill it with e-liquid through its bottom-filling system, taking care not to exceed its 9ml capacity.
3. Reinstall the bottle correctly and check that the Bottom Feed connection is properly seated and free from leaks.
4. Install a BF-compatible atomiser and make sure that it is fitted with the appropriate Bottom Feed pin.
5. Check that the build is within the supported 0.1Ω to 3Ω resistance range and verify that there are no shorts before vaping.
6. Gently squeeze the squonk bottle to push e-liquid into the atomiser and correctly saturate the wicking material.
7. Release the bottle to allow excess e-liquid to return through the Bottom Feed system.
8. During use, monitor the RGB LED battery indicator and refill the squonk bottle whenever required.

Frequently Asked Questions

What is the maximum output of the Reload Squonk Mod? The device can provide up to 136W, with power automatically adjusted according to the installed build.

Which batteries does it use? It operates with two replaceable 18650 batteries. Batteries are not included with the mod.

What is the squonk bottle capacity? The included silicone bottle holds up to 9ml of e-liquid and features a bottom-filling design.

What resistance range does it support? The specified operating range is 0.1Ω to 3Ω.

How can I check the battery level? The Reload Squonk Mod features an RGB LED indicator that provides a visual indication of the remaining battery level.

Which atomisers can I use? The device is intended for compatible Bottom Feed atomisers. Models measuring up to 25 mm in diameter can sit flush with the body of the mod.

Is an atomiser included? No. This listing is for the squonk mod and includes the silicone bottle and user manual, while the atomiser must be purchased separately.

Is the Reload Squonk Mod suitable for beginners? Although the squonk system makes e-liquid feeding convenient, this type of device is primarily intended for users familiar with BF atomisers, rebuildable coils and the safe handling of external batteries.
