Eleaf Istick Pico Plus Mod Vape

What Is the Eleaf iStick Pico Plus Mod

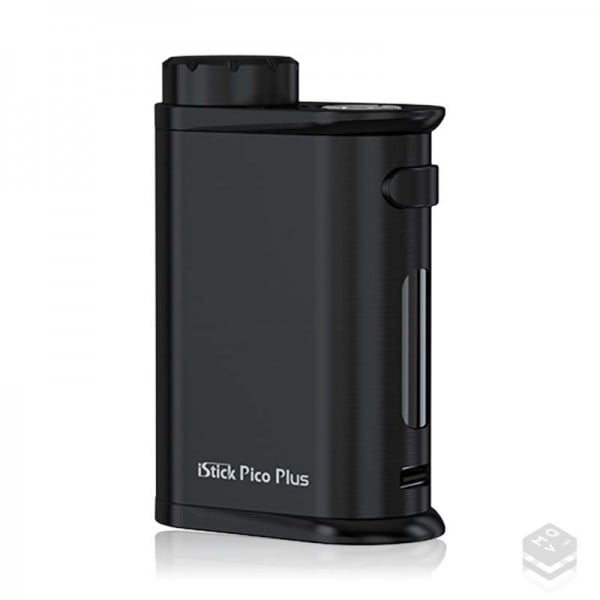

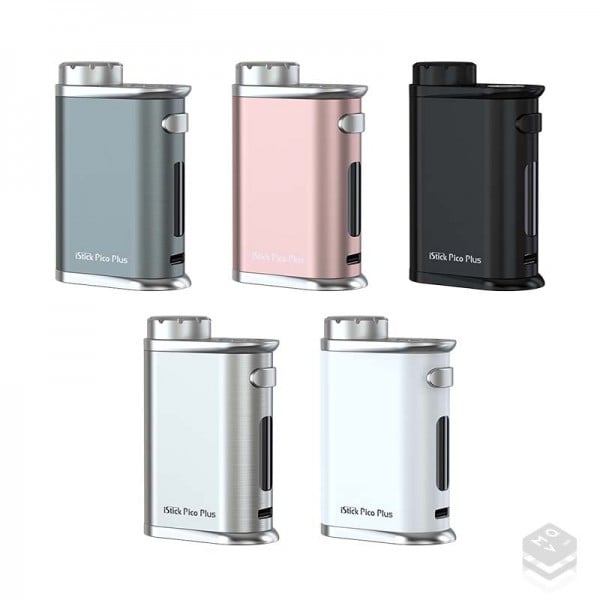

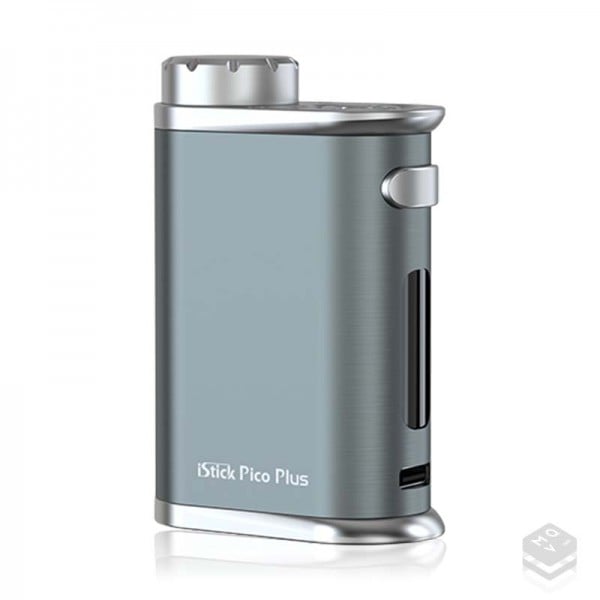

The Eleaf iStick Pico Plus Mod is a compact electronic box mod from Eleaf’s well-known iStick Pico series, designed for users looking for a small, adjustable device with broad atomizer compatibility. It retains one of the most recognizable features of the Pico family, its replaceable 18650 battery design, while offering a wider 510 platform capable of accommodating atomizers up to 25 mm in diameter. The device provides an adjustable power output from 1 to 75W, an OLED display, and several operating modes to customize the vaping experience. It also features a USB Type-C port with a specified 5V/2A charging rate and compact dimensions of 47 x 25 x 70.6 mm. This makes it an appealing option for users searching for a compact Eleaf 75W mod with a replaceable battery and versatile 510 connection.

What Is the Eleaf iStick Pico Plus Mod Used For

The iStick Pico Plus is designed to act as the power and control unit for compatible atomizers featuring a 510 connection, allowing users to adjust wattage and other parameters depending on the selected operating mode. Its output of up to 75W provides flexibility for different setups, provided that the specifications of both the installed coil and atomizer are respected. Unlike devices equipped with a permanently integrated battery, this model uses a replaceable 18650 battery, allowing the cell to be changed without replacing the entire mod. Its chipset supports VW/Power, TC and Bypass modes, while the OLED screen displays essential operating information. Its compact format is particularly suitable for users who want portability, electronic regulation, and the flexibility associated with a 510 thread box mod.

Eleaf iStick Pico Plus Mod Features and Specifications

One of the key features of the Eleaf iStick Pico Plus 75W is its ability to retain the compact design concept that made the Pico series popular while expanding the top platform to accommodate atomizers measuring up to 25 mm in diameter. Eleaf combines this design with an electronic chipset offering multiple operating modes, a monochrome OLED screen, and several electronic safety protections. Power is supplied by a single replaceable 18650 battery, which is not included with the standalone mod, while the USB Type-C port supports the 5V/2A charging specification stated by Eleaf. These characteristics make the Pico Plus a versatile choice for users searching for an Eleaf box mod with 18650 battery compatibility without moving to a significantly larger device.

• Manufacturer: Eleaf.
• Model: iStick Pico Plus Box Mod.
• Dimensions: 47 x 25 x 70.6 mm.
• Materials: aluminium alloy and zinc alloy.
• Battery: 1 x replaceable 18650 battery, not included.
• Output power: 1-75W.
• Resistance range specified by Eleaf: 0.3-3.5 ohm.
• Operating modes: VW/Power, TC and Bypass.
• Temperature control range: 100-315°C.
• Display: monochrome OLED screen.
• Connection: 510 thread.
• Maximum atomizer diameter: up to 25 mm.
• Charging: USB Type-C, 5V/2A.

Compatible Coils and Tanks for the Eleaf iStick Pico Plus Mod

As the Eleaf iStick Pico Plus Mod is a 510 box mod rather than a pod system using proprietary cartridges, it does not require a specific pod or cartridge. Its platform is designed for atomizers with a 510 connection and a diameter of up to 25 mm, while users must also consider the resistance range supported by the device and the specifications of the atomizer being installed. According to the technical specifications for the mod, its supported resistance range is 0.3 to 3.5 ohm. Consequently, the correct replacement coil is primarily determined by the tank installed on the Pico Plus rather than by the mod itself. This provides considerably more flexibility than a closed pod system because users can select from different compatible 510 atomizers while remaining within the technical limits specified for the device.

What Battery Does the Eleaf iStick Pico Plus Use?

The Eleaf iStick Pico Plus uses one replaceable 18650 battery, which is not included with the standalone mod. The replaceable cell design is one of the most distinctive features of the Pico family and provides an important difference compared with compact devices featuring permanently integrated batteries. The recognizable battery-cap arrangement is retained in this version, helping the device maintain compact dimensions and a height of only 70.6 mm. When using an external battery, it is essential to choose a suitable high-quality cell and to observe its electrical specifications and operating limits. The device also incorporates several electronic safety features, including protections related to overcharging, over-discharging, overcurrent, excessive activation time, short circuits, and reverse battery polarity.

How to Charge the Eleaf iStick Pico Plus and USB-C Advantages

The Eleaf iStick Pico Plus features a USB Type-C connection, with Eleaf specifying a charging input of 5V/2A for the device. This provides a modern connection standard compared with the ports found on some earlier generations and offers a convenient charging option when used with appropriate equipment. The standard standalone package includes a USB Type-C cable, although the 18650 battery required to power the mod is sold separately. For users accustomed to replaceable battery devices, being able to swap the cell remains one of the principal practical advantages of this model, while the USB-C connection provides an additional charging option when required. The combination of a replaceable 18650 battery, USB-C charging and compact dimensions is therefore one of the defining characteristics of the Pico Plus.

Which Atomizers Are Compatible with the iStick Pico Plus 75W?

The Eleaf iStick Pico Plus 75W features a 510-threaded platform designed to accommodate atomizers measuring up to 25 mm in diameter. This provides considerable flexibility when building a setup and expands the choice of tanks compared with Pico designs featuring a narrower top platform. Official Eleaf configurations have paired the Pico Plus with tanks such as the Melo 4S and GTL X Tank, while its standard 510 connection makes it possible to use other technically compatible atomizers. Before installing a different tank, users should verify its diameter, connection type, coil resistance and recommended operating wattage. Both the limitations of the mod and the specifications provided for the installed coil should always be observed when selecting and configuring a compatible atomizer.

Why Buy the Eleaf iStick Pico Plus Mod?

Buying the Eleaf iStick Pico Plus Mod can be particularly appealing for users who value the combination of compact dimensions, a replaceable battery, and the freedom to select their preferred atomizer. Its maximum 75W output provides a broad adjustment range, while VW, TC and Bypass operating modes offer different configuration possibilities. The device also combines a 510 platform supporting atomizers up to 25 mm, an OLED display, USB Type-C charging and a replaceable 18650 battery. All these features are incorporated into a body measuring just 47 x 25 x 70.6 mm, maintaining the compact philosophy associated with the Pico range. For users searching for a small Eleaf mod with an external battery, the Pico Plus combines modern connectivity with the familiar and practical design of the iStick Pico series.

What Is Included with the iStick Pico Plus Box Mod?

The standard Eleaf iStick Pico Plus Box Mod package includes the device itself together with a USB Type-C cable for charging connectivity. The 18650 battery required to power the device is not included, so it must be purchased separately unless the user already owns a suitable compatible cell. Buyers should also distinguish the standalone Mod version from Pico Plus kits that Eleaf has offered together with tanks such as the Melo 4S or GTL X. The standalone box mod is intended for users who want to purchase the power unit separately and select a suitable 510 atomizer according to their preferred setup. Before use, the specifications of the selected tank, coil and battery should always be checked against the technical requirements of the Pico Plus.

Where to Buy the Eleaf iStick Pico Plus Mod

You can purchase the Eleaf iStick Pico Plus Mod by Eleaf at the best price from Masquevapor, your trusted online store for vaping products.

If you are looking to buy an Eleaf iStick Pico Plus 75W, choosing a specialist retailer makes it easier to find the accessories required to complete your setup, including an appropriate 18650 battery, compatible atomizers and replacement coils for your chosen tank. Before purchasing, remember that this particular product is the Pico Plus Box Mod, meaning that the battery and atomizer may not be included unless specifically stated in the individual product listing. Its combination of a 510 connection, maximum 75W output, replaceable battery and compact dimensions makes the Pico Plus a versatile option within Eleaf’s range of regulated box mods for adult users.
